FLAT PACK CUTTING & FORMING>PRESSES
Cut and form flat packs to exact specifications with Manix Manufacturing's FP Series lead forming systems. Circuit assemblers will enjoy the ease and precision in which FP systems prepare components for either thru-hole or surface mount applications. Component manufactures will also find FP dies and presses profitable tools for providing their customers the value-added convenience of ready-to-mount devices. Interchangeable dies, mounted to your choice of a compact manual or pneumatic press, form leads with extreme accuracy and uniformity and provide burr-free cutting to precise, repeatable lead lengths.
FP-1 MANUAL PRESS
OVERVIEW
Easily install flat pack cutting and forming dies with the economical FP-1 hand operated press. Compact in size, but large in results, the FP-1 offers an economical approach to flat pack forming.
PRODUCT FEATURES
Small Footprint easily fits in any production environment.
A rugged cast base and a comfortable hand lever ease flatpack component cutting and forming.
Precision ground bases ensure maximum repeatability of form.
Mount Fixed dies with four-4 screws.
SPECIFICATIONS
Activation: Hand Lever
Rate of Forming: Up to 500 parts per hour
Size: 7”W X 8”L X 15”H
178mm X 203mm X 381mm
Weight: 8 lbs, 3.6 kgs.
Mounting Holes: 4.25”W X 6”L
108mm X 152mm
FP-6 PNEUMATIC PRESS
OVERVIEW

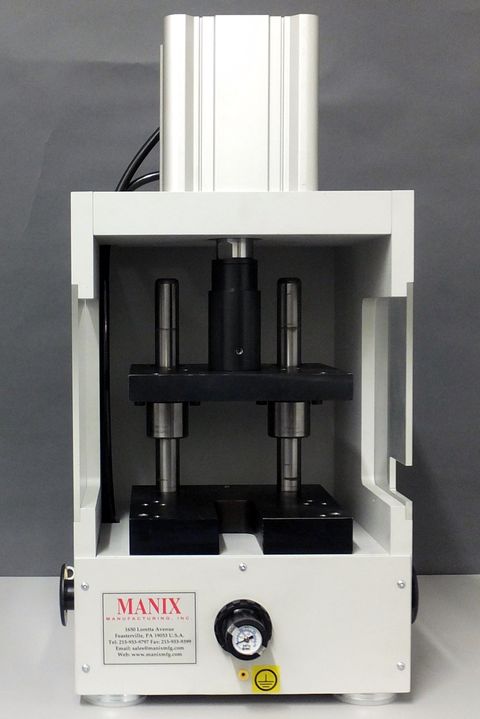

All Manix flat pack cutting and forming dies can mount on the rugged FP6 pneumatic press. Fixed and adjustable dies are easily installed within minutes providing fast and accurate changeover.
Once connected to your air source, simply push the OSHA safe buttons and activation occurs. The powerful cylinder will stroke, causing the die to actuate, cutting and forming the flat pack to its desired dimensions.
Due to its unique design, the FP6 includes a factory installed blank die set. Manix cutting and forming dies simply mount into this die set, saving money and time.
PRODUCT FEATURES
Sturdy Aluminum Frame.
Built-in Regulator ensures proper air pressure.
Integrated Precision Ground Steel Die Set.
Dual Palm Switches Provide Safe Operation.
Heavy Duty Cylinder Provides Stress Free Forming.
Safety Guards Eliminate Operator Injury.
SPECIFICATIONS
Activation: Dual Palm Switches
Size: 12”W X 12”D X 28.5”H
305mm X 305mm X 723mm
Weight: 98 lbs. / 44.5 kgs.
Air Supply: 80 psi required
Cylinder: 2.95” Stroke, 4.92” Bore
75mm Stroke, 125mm Bore
Paint: Powder Coat, Off White
