BST CLEANER

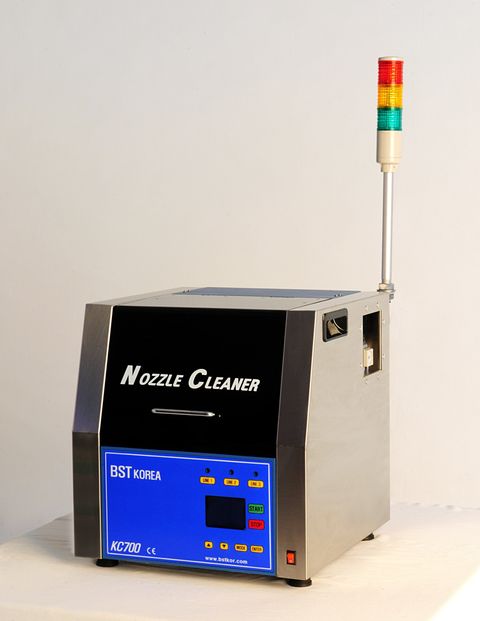

The KC700 SMT Nozzle Cleaner from BST is designed to clean up to 24 pick and place nozzles in less than 5 minutes. Eliminate costly downtime on the SMT floor due to clogged or dirty nozzles. Easy to use, simply load the removable nozzle tray, close the lid, and press the start button. A LCD display steps the operator through the process.
BST CLEANER
OVERVIEW
Cleaning SMT pick and place nozzles by hand is time consuming and extremely costly. The patented processes of the KC700 thoroughly cleans each nozzle inside and out. Cleaning power is doubled by mixing high pressure air and detergent and spraying them inside the hole of the nozzle and the external nozzle tip in a soapy formula. A special spray nozzle improves the efficiency of the cycle.
PRODUCT FEATURES
Simultaneous cleaning of up to 24 nozzles.

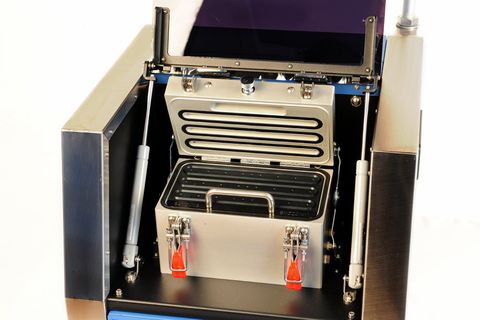

Removable nozzle tray eases set-up.
Simple operation by one touch program.
Wash and dry in less than 12 seconds per nozzle or less than 5 minutes per tray of 24.
3” LCD display provides cycle status.
Nozzle trays available for all pick and place machines
SPECIFICATIONS
Dimensions: 15.7” x 15.7” x 16.5”
400mm x 400mm x 420mm
Weight: 68 lbs. / 31 Kg.
Air pressure: 100psi / 7kgf/cm
Voltage: 100/240VAC, 50/60 HZ, 3A
Cleaning Process: Cleaning top and bottom – 120 seconds
Initial drying – 120 seconds
Final drying – 40 seconds
Options: Light Tower, Detergent, Additional Nozzle trays (one included with purchase)
